In the context of the global construction industry increasingly prioritizing fast installation, structural durability, and high aesthetic standards, Snaplock (Standing Seam Roofing) systems have become a major trend in markets such as Australia, the United States, the Middle East, and Europe. To meet the demand for on-site panel production, reduce transportation costs, and optimize project timelines, Snaplock Roll Forming Machine from Vietsteel Machinery is designed as a comprehensive, flexible, and efficient solution for international contractors.
Nội dung chính
1. What Is a Snaplock Roll Forming Machine?
A Snaplock Roll Forming Machine is a roll forming system designed to produce Snaplock (standing seam) roofing panels from pre-painted steel coils or galvanized steel coils.
Unlike traditional screw-fastened roofing systems, Snaplock roofing offers:
– No screw penetration through the roof surface
– Seam locking mechanism with snap-lock design
– Superior waterproof performance
– High wind resistance
– Modern and clean aesthetic appearance

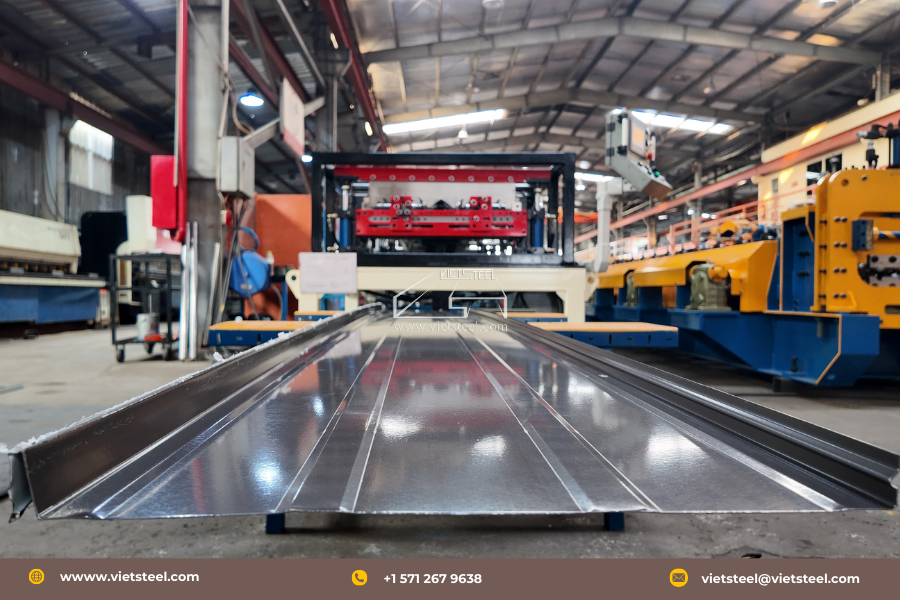

The Snaplock Roll Forming Machine enables the production of continuous long roofing panels customized to project requirements, making it ideal for:
– Industrial factories
– Warehouses
– Commercial centers
– Farms and agricultural buildings
– Pre-engineered buildings
– Solar rooftop projects
2. Overview of the Snaplock Roll Forming Machine
Mobile and Compact Design
– Machine weight: approximately 2 tons
– Dimensions: 3.7m x 1.8m x 1.5m (12′ x 4.7′ x 5.9′)
– Easy transportation by truck or container
– Suitable for on-site production
The mobile design of the Snaplock Roll Forming Machine allows contractors to manufacture panels directly at the construction site, eliminating the risks associated with transporting long roofing sheets.
Main Technical Specifications
| Item | Specification |
| Power | Gasoline engine 16 HP |
| Weight of machine | 2 tons |
| Dimension (L x W x H) | 3.7m x 1.8m x 1.5m (12′ x 4.7′ x 5.9′) |
| Forming speed | 18 meters/minute |
| Forming rollers stations | 10 |
| Transmission system | Hydraulic motor |
| Cutting system | Hydraulic motor |
| Pre-cutting | Hydraulic motor |
| Control system | PLC, fully automatic programmable |
| Changing size | Manual |
| Oil tank capacity | 50 liters |
| Hydraulic oil | AW68 |
| Oil supply | Provided by the customer |
| Effective width | 304.8mm – 508mm (12″ – 20″) |
| Material width | 406.4mm – 609.6mm (16″ – 24″) |
| Material thickness | 0.45mm – 0.7mm (0.26 Ga – 22 Ga) |
| Material yield strength | G350 – G450 Mpa |
These specifications ensure that the Snaplock Roll Forming Machine meets international material standards and performance requirements.

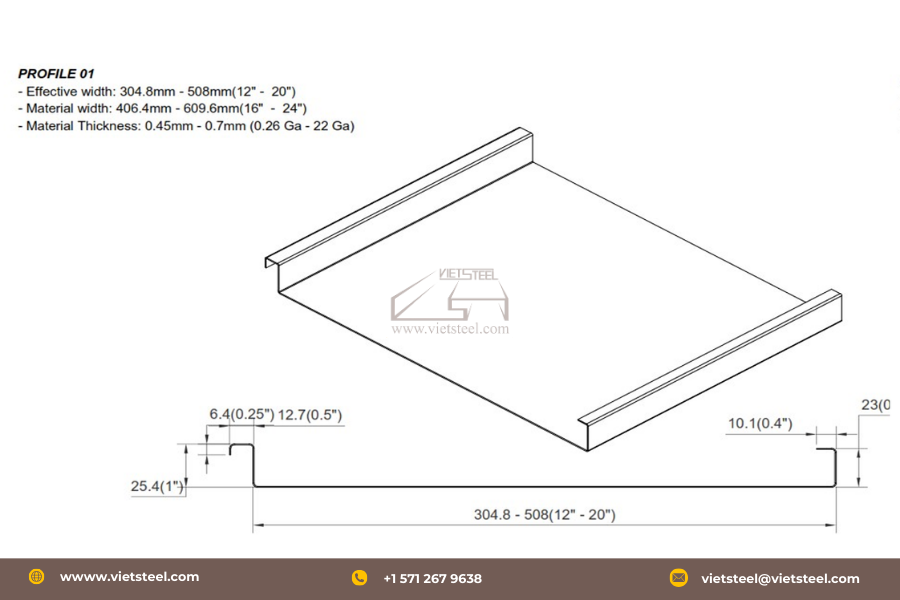

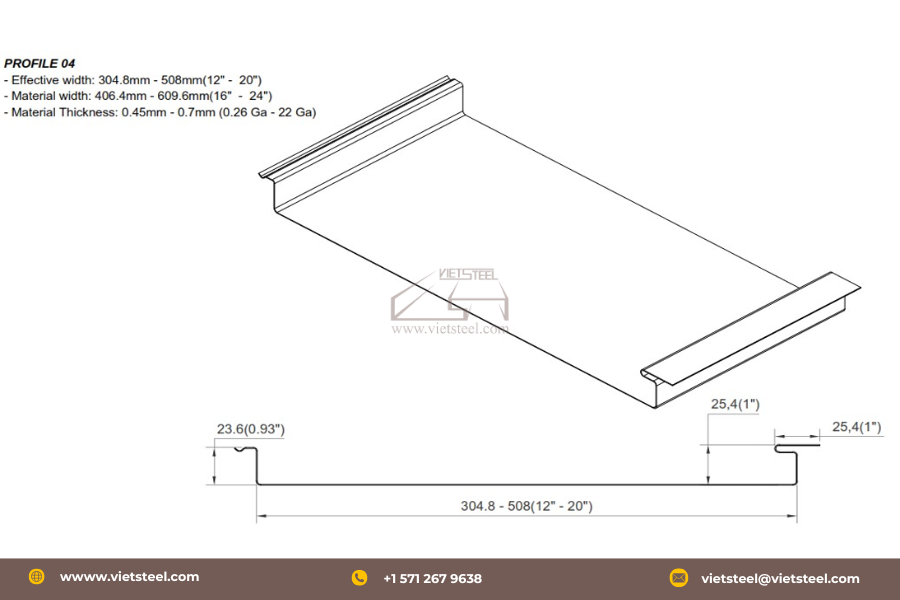

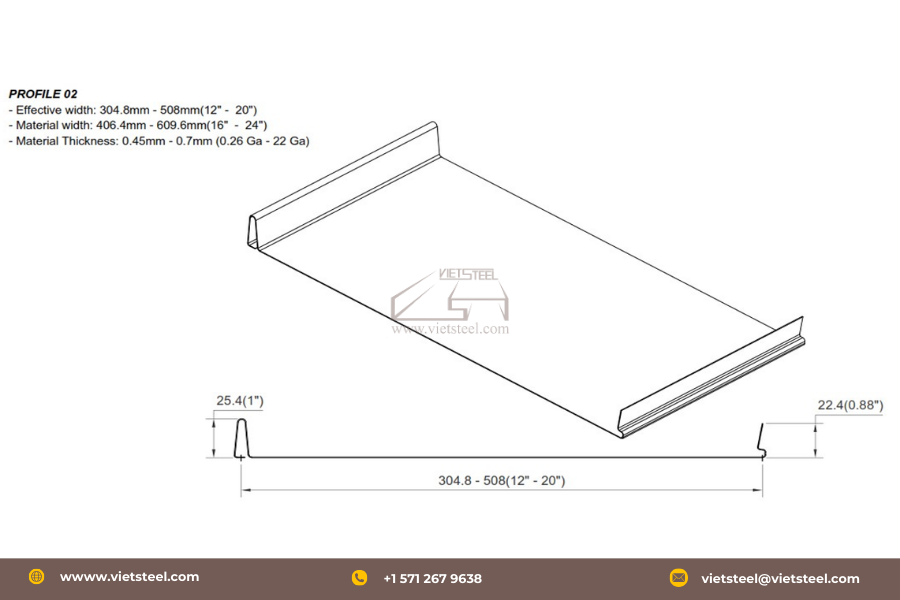

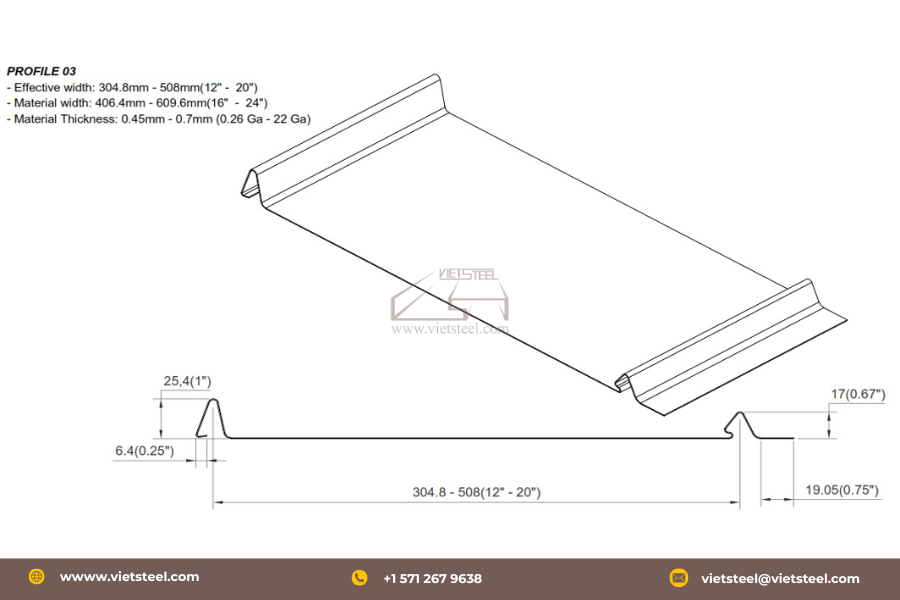

4. Multi-Profile Production Capability
Quick-Change Cassette Module System
One of the outstanding strengths of the Snaplock Roll Forming Machine designed by Vietsteel Machinery is its interchangeable cassette forming system.
Instead of investing in multiple production lines, customers only need to:
– Replace the cassette module
– Adjust the panel width
– Reconfigure the PLC settings
This allows the machine to produce various Snaplock profiles depending on project requirements.
>>> Video about the machine

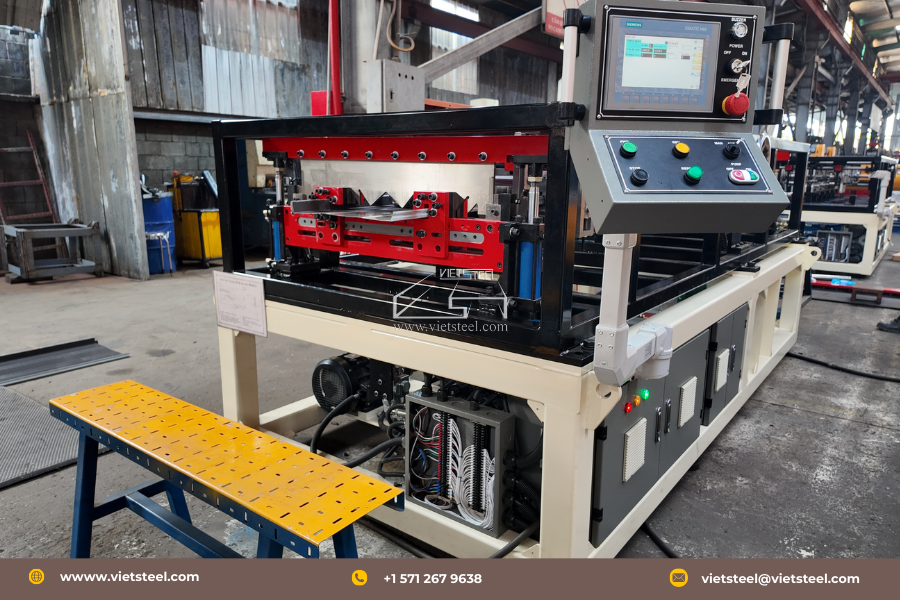

5. Structure of the Snaplock Roll Forming Machine
Heavy-Duty Machine Frame
– Reinforced steel structure
– Precision CNC machining
– Ensures stability when forming high-strength steel
The robust frame design guarantees long-term durability and stable operation under demanding job site conditions.
Roll Forming System
– 10 forming stations
– High-precision machining
– Sharp and consistent Snaplock profile shaping
Role of the forming rollers:
– Precisely shape the locking seam
– Ensure superior waterproof performance
– Enhance roofing system durability
Hydraulic Transmission System
The hydraulic system provides:
– Stable power transmission
– Reduced vibration
– Increased mechanical durability
– Lower maintenance requirements
This design makes highly reliable for continuous on-site operation.
Automatic Cutting System
– Hydraulic cutting system
– Length programmable via PLC
– Accurate cutting according to preset dimensions
Advantages (No deformation at panel ends; Clean and professional finishing)
Width Adjustment System
– Dual-side screw adjustment mechanism
– Quick width change from 12” to 20”
– Reduced downtime
This feature is particularly important for contractors handling multiple panel sizes within the same project.
6. Why Choose the Snaplock Roll Forming Machine from Vietsteel Machinery?
Vietsteel Machinery has many years of experience in roll forming machine manufacturing and international export.
Our strengths include:
– Custom design based on customer requirements
– High-precision CNC machining
– Experienced engineering team
– Online technical support
– Spare parts supply
– OEM manufacturing support
We do not simply sell machines — we deliver complete roofing production solutions tailored for global contractors.
>>> Learn more about related models:
Seamlock Roll Forming Machine
Roofing roll forming machine – v lock profile
