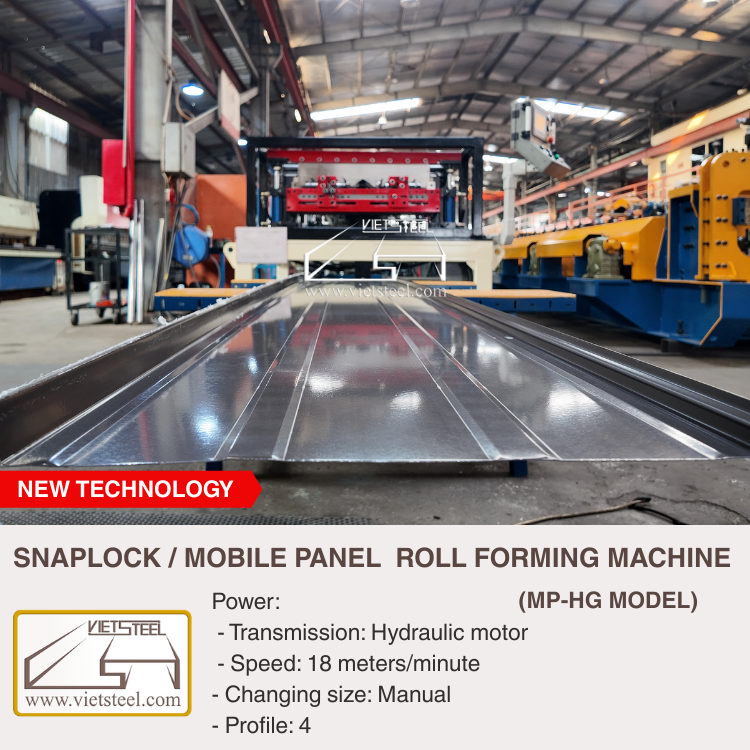

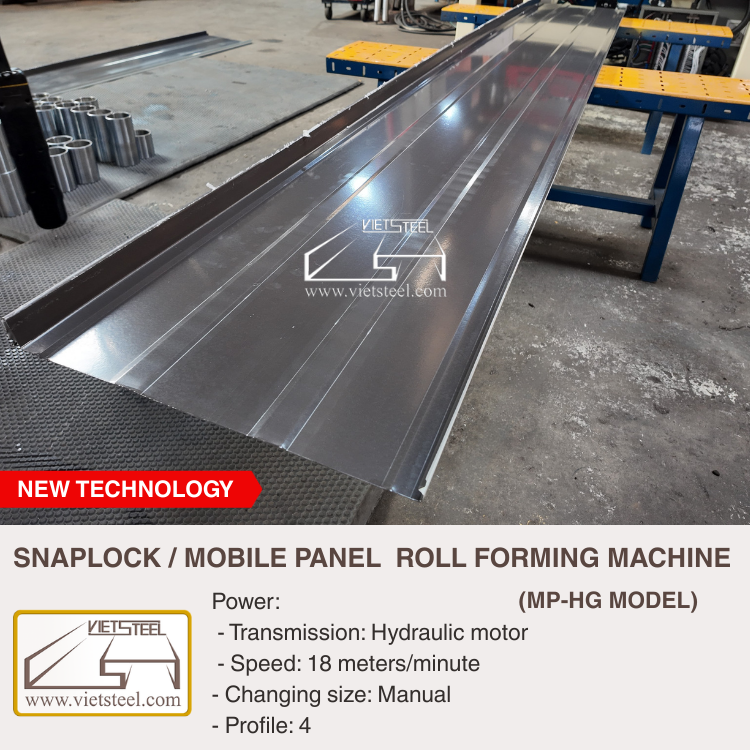

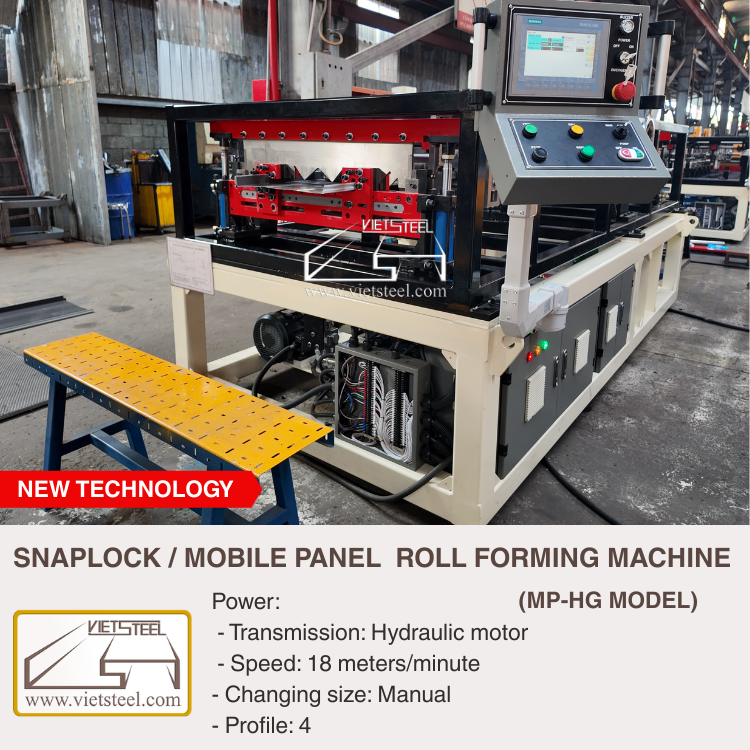

Snaplock/Mobile Panel Roll Forming Machine (MP-HG Model)
Power:
– Transmission: Hydraulic motor
– Speed: 18 meters/minute
– Changing size: Manual
– Profile: 4
+1 571 267 9638 - +84 906 898 860
vietsteel@vietsteel.com

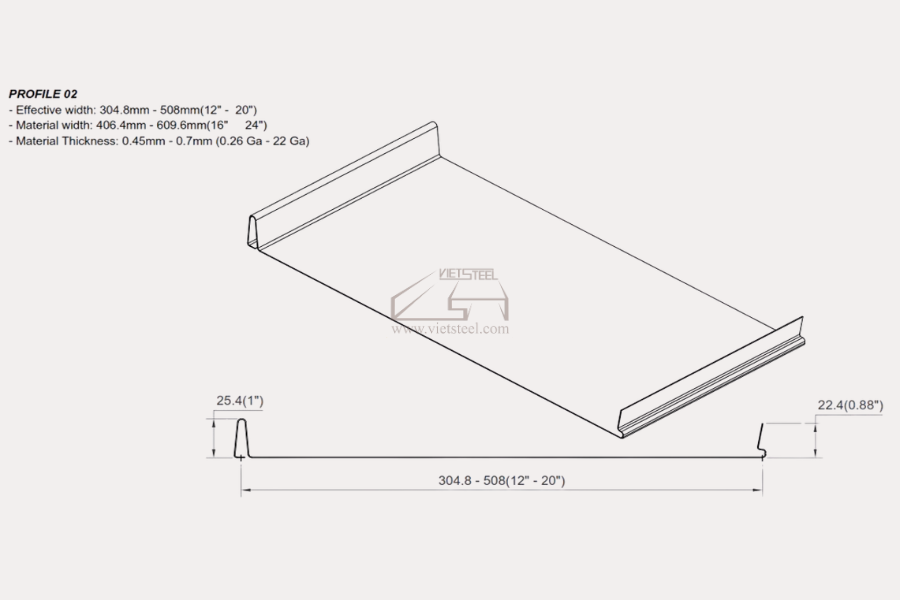

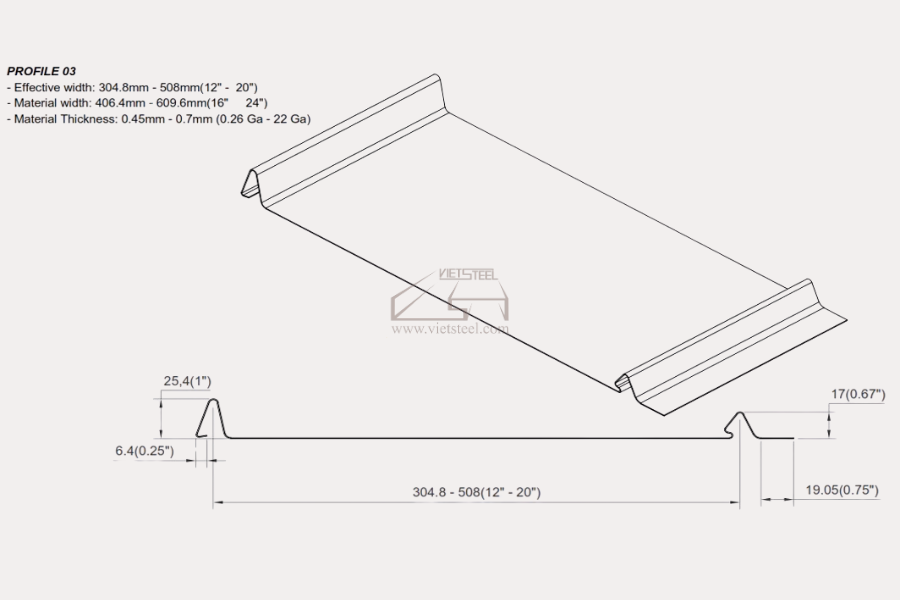

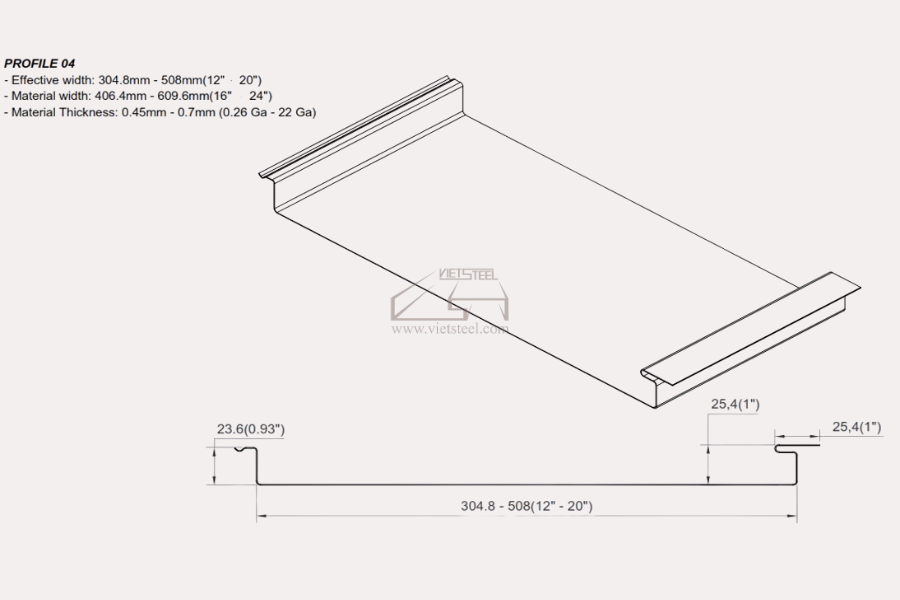

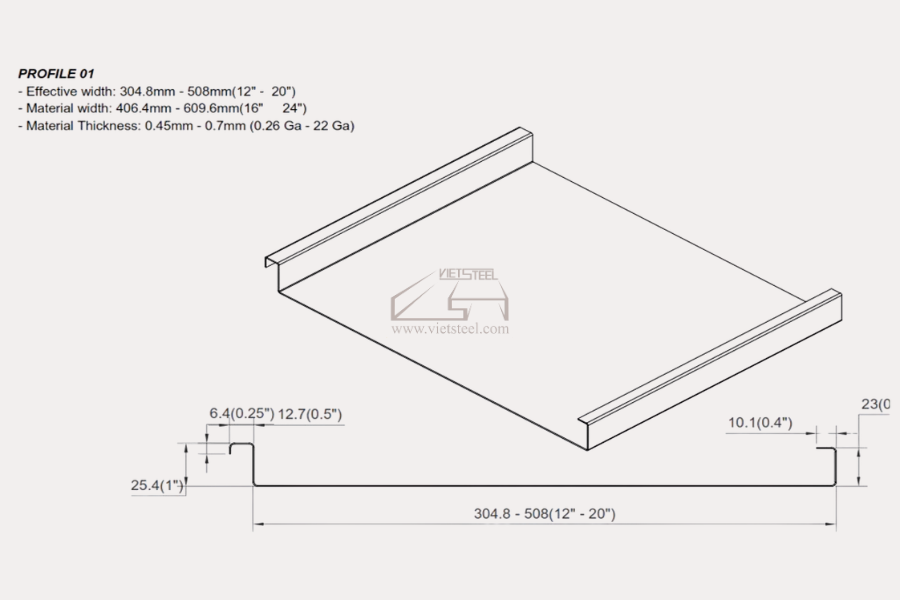

PROFILE
SPECIFICATION
| Item | Specification |
|---|---|
| Power | Gasoline engine 16 HP |
| Weight of machine | 2 tons |
| Dimension (L x W x H) | 3.7m x 1.8m x 1.5m (12′ x 4.7′ x 5.9′) |
| Forming speed | 18 meters/minute |
| Forming rollers stations | 10 |
| Transmission system | Hydraulic motor |
| Cutting System | Hydraulic motor |
| Pre-cutting | Hydraulic motor |
| Control system | PLC , fully automatic programmable |
| Changing size | Manual |
| Oil tank capacity | 50 liters Hydraulic oil: AW68 Provided by the customer |
| Effective width | 304.8mm- 508mm(12″ – 20″) |
| Material width | 406.4mm – 609.6mm(16″ – 24″) |
| Material Thickness | 0.45mm – 0.7mm (0.26 Ga – 22 Ga) |
| Material Yield Strength | G350 – G450 Mpa |
MAIN FEATURE
– The machine can produce multi-different profiles by replacing the forming cassette modules.
– Capable of processing various raw material widths from 304.8 mm to 508 mm (12″–20″).
– Quick and easy sheet width changeover, minimizing downtime.
– Compact and lightweight design, suitable for transportation and on-site installation.
– Can be operated on-site where grid power is unavailable.
– Easy to operate and user-friendly.
