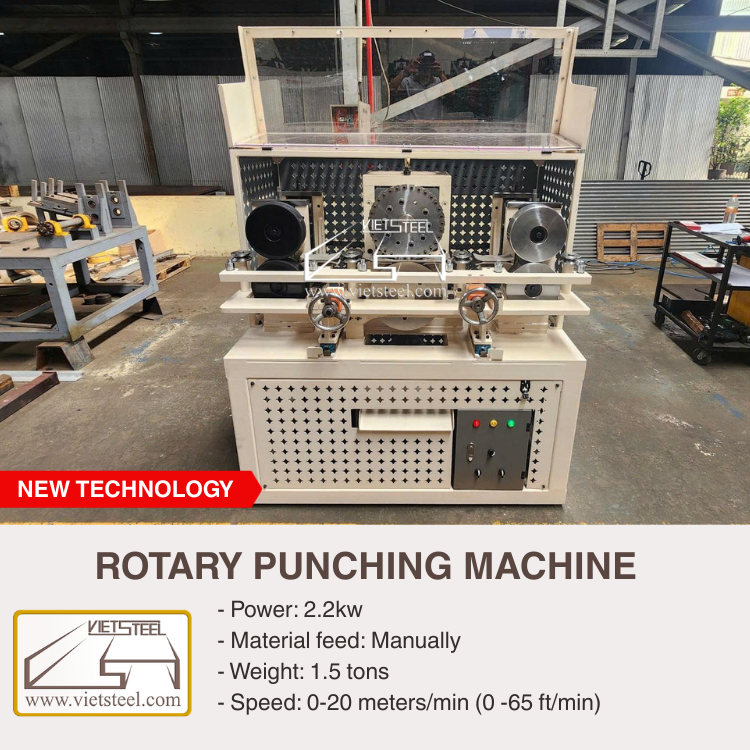

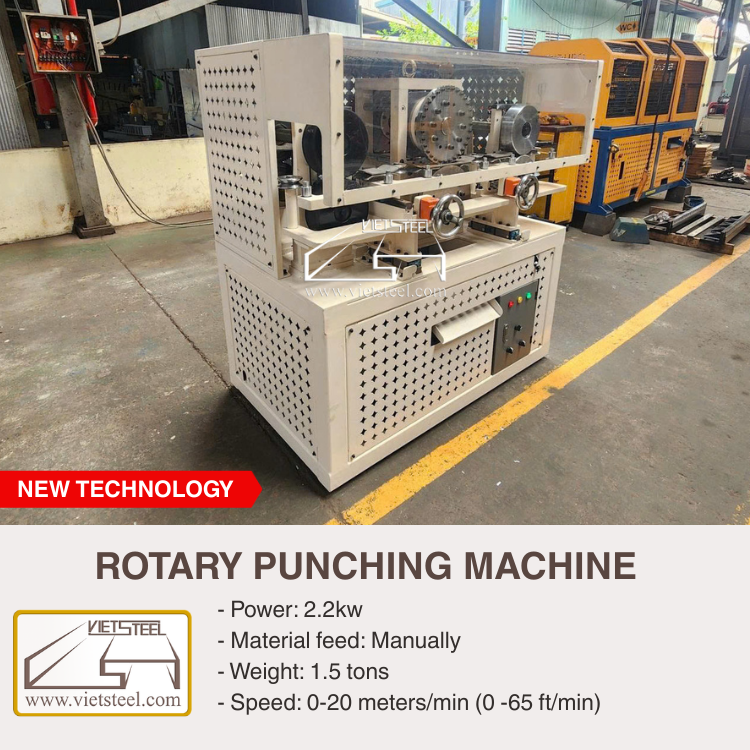

Rotary Puching Machine [NEW]
– Power: 2.2kw
– Material feed: Manually
– Weight: 1.5 tons
– Speed: 0-20 meters/min (0 -65 ft/min)
+1 571 267 9638 - +84 906 898 860
vietsteel@vietsteel.com
SPECIFICATION
| ITEMS | TECHNICAL DATA | ||||||
| Electric requirement: | 480V/3PH/60HZ | ||||||
| Power: | 2.2kW | ||||||
| Weight of Machine: | 1.5 tons | ||||||
| Dimension (LxWxH) | 1.4m x 1.0m x 1.5m | ||||||
| Speed: | 0-20 meters/min (0 -65 ft/min) | ||||||
| Foming rollers stations | 3 | ||||||
| Transmission by: | Motor gearbox | ||||||
| Punching systen | Rotary punching | ||||||
| Punching material | SKD11 | ||||||
| Side guide adjustable | Manual by screw and hand crank | ||||||
| Material feed | Manually | ||||||
| Material thickness | 0.5-0.7 mm (22 – 26 GA) | ||||||
| Material yield strength | 350 – 500 Mpa | ||||||
BRAND OF COMPONENT
| PLC | : SIEMENS/ DELTA/ INVT | ||||||
| Electric motor | : ABB/ Toshiba | ||||||
| Cutting dies | : SKD11 | ||||||
| Rollers | : SCM440 | ||||||
MAIN FEATURE
– Rollers are SCM440 made by CNC precision machine and hard chromium plated.
– Cutting die is SKD11 steel made by CNC machine, thermal treatment get 52-58HRC.
– The rotary punching machine is equipped with a handwheel for manual adjustment of the edge-to-punch distance from 5 to 20mm (0.2″ to 1″).
– The rotary punching machine is equipped with a handwheel adjustment system, enabling quick adaptation to different input profiles
