In the sheet metal processing industry, particularly with steel coils, the recoiler machine (also known as a rewinder or coil recoiler) plays a vital role in converting large master coils into smaller, more manageable coils. As a leading manufacturer in Vietnam, Vietsteel Machinery Co., Ltd. specializes in designing and producing two main recoiler models: RE-E / RE-H / RE-C series. These machines are ideal for integration with Slitting Lines and Cut-to-Length (CTL) lines.
Nội dung chính
What is a Recoiler Machine?

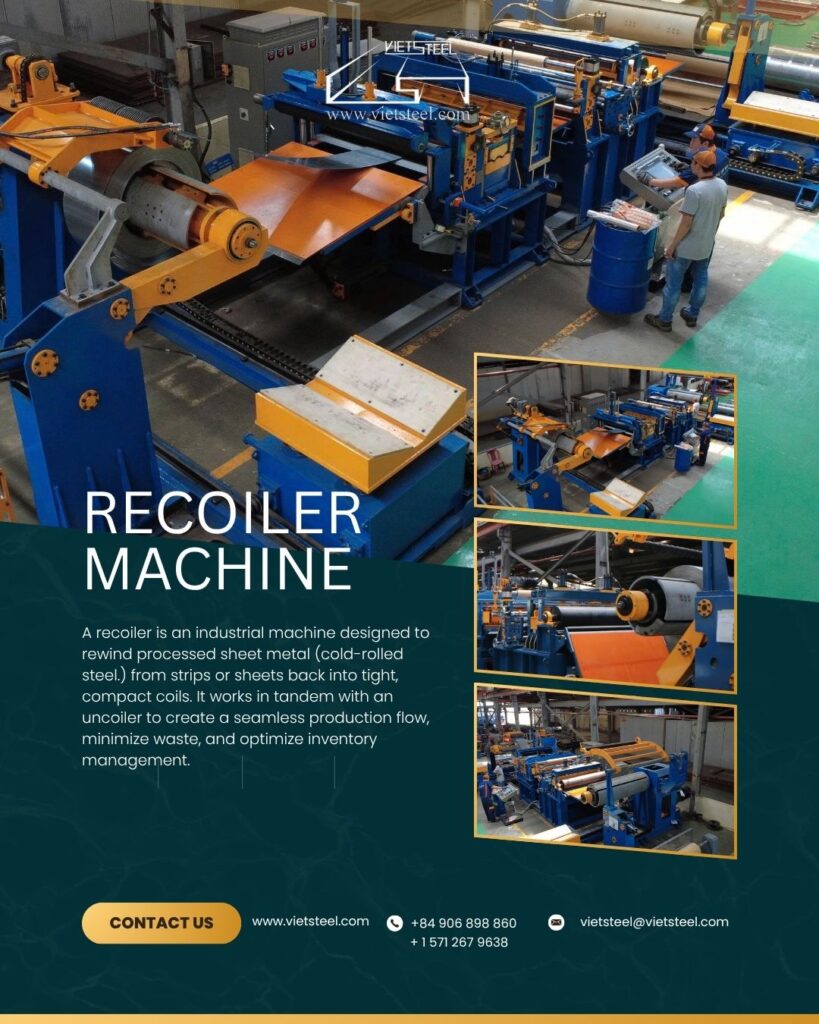

A recoiler is an industrial machine designed to rewind processed sheet metal (cold-rolled steel, hot-rolled steel, stainless steel, aluminum, etc.) from strips or sheets back into tight, compact coils. It works in tandem with an uncoiler to create a seamless production flow, minimize waste, and optimize inventory management.
For engineers and production managers, a recoiler is more than just auxiliary equipment — it’s a strategic tool that delivers:
- Reduced inventory costs: Buy large master coils and rewind to exact specifications as orders come in.
- Greater production flexibility: Easily handle small batches and quick width changes.
- Lower material waste: Maximize utilization of raw materials.
- Improved productivity: Consistent speed, fewer defects, and smoother downstream processes.
Slitting Recoiler vs. CTL Recoiler: Key Differences
Nhiều chuyên gia nhầm lẫn giữa máy cuộn thép dùng trong dây chuyền xẻ rãnh với máy cuộn thép dùng trong dây chuyền cắt theo chiều dài. Trên thực tế, chúng khác nhau đáng kể về thiết kế và chức năng:
| Criteria | Slitting Line Recoiler | CTL Line Recoiler (Cut-to-Length) |
| Output | Multiple narrow strips rewound into separate coils | Primarily flat sheets; recoiler often for scrap or auxiliary rewinding |
| Tension System | Requires Tension Stand + Separator Disks to prevent scratching and tangling | Minimal or no tension system needed |
| Mandrel Design | Heavy-duty, load-distributing with rubber spacers | Lighter or simplified design |
| Primary Application | Rewinding slit strips for roll forming, stamping, tube welding | Supporting accurate sheet cutting for roofing, panels, automotive parts |
The Slitting Recoiler is the most common type, efficiently collecting multiple narrow strips into neat coils after the slitting process.
Vietsteel Recoiler Models
1. Model RE-E
- Power: 2.2 kW
- Machine weight: 1 ton
- Dimensions: L=1.0m × W=1.8m × H=1.0m
- Speed: 16 – 20 m/min
- Thickness range: 0.2 – 0.8 mm
- Max strips: Up to 6
- Coil capacity: 1 ton
- Drive: Gear motor – simple, reliable, and perfect for small-to-medium workshops producing trim, gutters, roller shutters, and similar products.
2. Model RE-H / RE-C – Heavy-Duty High Performance
- Power: 7.5 kW
- Machine weight: 8 tons
- Dimensions: L=3.5m × W=4.1m × H=2.3m
- Coil capacity: Up to 6 tons
- Advanced hydraulic tension + pneumatic hold-down arms
- Premium components: Siemens/Delta PLC, Toshiba/ABB motors, Yuken hydraulics Ideal for high-volume production lines requiring continuous operation and maximum stability.
How a Recoiler Works
The process is straightforward and highly efficient:
- Material Feeding: Slit strips are guided into the gripper slot on the mandrel.
- Rewinding: A powered mandrel rotates while maintaining constant tension via inverter control and tension systems.
- Separation: Separator disks keep individual strips aligned and prevent scratching.
- Coil Removal: Once complete, the finished coil is automatically pushed off (coil car optional) and ready for banding and shipping.
This results in tight, uniform coils that are easy to transport and use in subsequent processes like roll forming or stamping.
Key Benefits of investing in a Vietsteel Recoiler
- Inventory optimization: Store only master coils and produce custom sizes on demand.
- Significant waste reduction: Near 100% material utilization.
- Enhanced safety: High automation reduces manual handling of heavy coils.
- Seamless integration: Perfectly compatible with Vietsteel slitting and CTL lines.
- Competitive pricing: Locally manufactured in Vietnam with excellent after-sales support and lower cost compared to imported alternatives.
Frequently Asked Questions (FAQs) about Recoiler Machine
1. What is a recoiler machine used for? A recoiler rewinds slit or processed sheet metal into tight coils. It is essential in slitting lines to turn wide master coils into multiple narrower coils and serves as auxiliary equipment in Cut To Length lines for scrap recovery or special applications.
2. What are the main differences between a slitting recoiler and a CTL recoiler? Slitting recoilers handle multiple narrow strips with strong tension and separator systems, while CTL recoilers are simpler and mainly used for flat sheet production or minor rewinding tasks.
3. Which industries benefit most from recoiler machines? Roofing, wall cladding, purlin, roller door, gutter, HVAC, automotive parts, electrical enclosure, and sheet metal service centers benefit significantly from recoiler technology.
4. What is the difference between Vietsteel’s RE-E and RE-H models? The RE-E is a compact, entry-level model suitable for thinner materials (0.2–0.8 mm) and smaller coils (1 ton). The RE-H/RE-C is a heavy-duty solution for thicker materials and larger coils (up to 6 tons) with advanced hydraulic tension systems.
5. How does a recoiler help reduce inventory costs? Instead of stocking many different coil widths and sizes, manufacturers can purchase large master coils and rewind them into required dimensions on demand, significantly lowering tied-up capital and storage space.
6. Can Vietsteel recoilers be integrated with existing production lines? Yes. Our recoilers are designed to integrate seamlessly with both new and existing slitting lines and cut-to-length lines from Vietsteel or other manufacturers.
7. What materials can Vietsteel recoilers process? They handle cold-rolled steel, hot-rolled steel, galvanized steel, stainless steel, aluminum, and other coated metals within the specified thickness ranges.
8. How do I choose the right recoiler for Vietsteel’s factory? Consider your material type and thickness, required coil capacity, number of strips, production volume, and whether you need a compact or high-capacity model. Our engineers will provide a tailored recommendation.
Who should consider a recoiler?
- Roofing, wall cladding, and purlin manufacturers
- Producers of roller doors, gutters, and cable trays
- Sheet metal service centers offering slitting and cut-to-length services
- Fabricators in automotive parts, electrical enclosures, and appliances
If you struggle with excessive coil inventory or want to streamline your current production line, a recoiler can deliver fast ROI.
