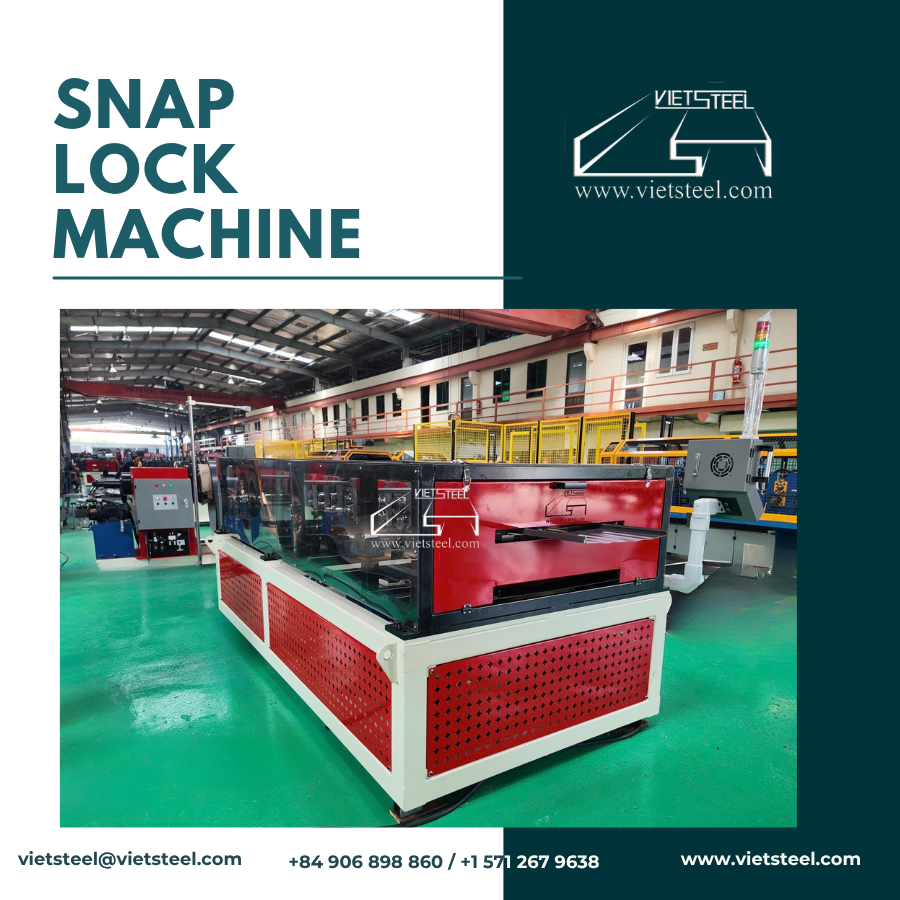

snap lock roll forming machine
5/5 - (2 votes)

Top Manufacturers of Portable Snap Lock /Mobile Panel Roll forming Machines

Snap Lock Roll Forming Machines / Mobile Panel Roll Forming Machines have significantly changed the metal roofing industry in recent years. Instead of depending on third-party manufacturers and distributors, contractors can now produce panels directly on-site. This gives them full control over the process and delivers major advantages in cost, time, quality, and flexibility.

These machines allow contractors to roll metal roofing and wall panels to any desired length on the job site. This reduces seams, minimizes material waste, eliminates transportation costs, and lowers the risk of panel damage during shipping. As a result, projects can be completed faster and more efficiently — from residential homes to large commercial buildings.

Snap Lock Machine / Mobile Panel Roll Forming Machines are compact, easy to transport, and enable on-site production of high-quality snap-lock panels. They ensure fast installation while maintaining excellent aesthetics and technical performance.

If you are looking for the best solution, check out: Top Manufacturers of Portable Snap Lock / Mobile Panel Rollforming Machines

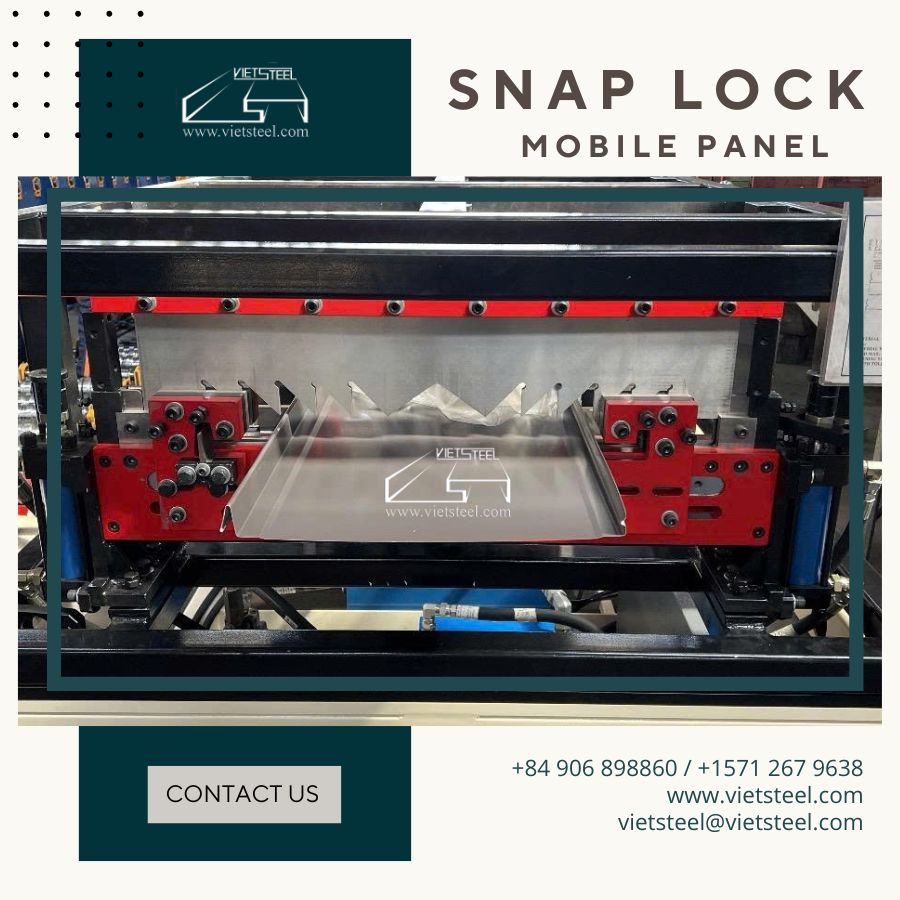

snap lock roll forming machine

Technical Specifications Portable Snap Lock / Mobile Panel Roll forming Machines

The Portable Snap Lock Roll Forming Machine is powered by a 16 HP gasoline engine and weighs 2 tons. With compact dimensions of 3.7m × 1.8m × 1.5m, it offers a forming speed of up to 18 meters per minute using 10 roller stations.

The machine features a fully hydraulic transmission, cutting, and pre-cutting system, controlled by a PLC for automatic and programmable operation. Size adjustment is done manually. It supports effective panel widths from 16″ to 30″ (406mm – 762mm), processes material from 0.45mm to 0.7mm thickness with yield strength between G350 and G450 MPa, making it ideal for on-site production of high-quality snap lock roofing and wall panels.

Technical Specifications Data, more information: Click Here

Key Features of the Portable Snap Lock Machine / Mobile Panel Roll Forming Machine

Multi-profile capability: The machine can produce different panel profiles by simply replacing the forming cassette modules.
Adjustable panel width: supports effective panel widths from 16″ to 30″ (406mm – 762mm), processes material from 0.45mm to 0.7mm thickness with yield strength between G350 and G450 MPa.
Quick width changeover: Sheet width can be adjusted quickly and easily, minimizing downtime between jobs.
Compact and mobile design: With a weight of only 2 tons and dimensions of 3.7m × 1.8m × 1.5m, the machine is easy to transport by truck or trailer and ideal for on-site installation.
Independent power source: Powered by a 16 HP gasoline engine, the machine can operate efficiently on job sites where grid electricity is unavailable.
High production speed: Delivers a forming speed of up to 18 meters per minute with 10 forming roller stations for consistent quality.
Fully hydraulic system: Equipped with hydraulic motor for transmission, cutting, and pre-cutting, ensuring smooth and reliable operation.
Advanced control: PLC control system with fully automatic programmable functions for precise and repeatable panel production.
User-friendly operation: Simple and intuitive design, making it easy for operators to run with minimal training.
Reduced material waste and seams: Produces continuous panels in custom lengths directly on-site, minimizing joints, transportation damage, and material waste.

Size Changing & Profile Adjustment Features Snap lock Machine

Precise Width Adjustment with Screw and Indicator: The machine features a manual crank system with left and right screws combined with clear indicators, allowing operators to adjust the material width quickly and accurately to the desired size.
Straight and Flat Cutting: The hydraulic cutting system delivers clean, straight cuts without bending, warping, or distortion, ensuring a high-quality finished panel every time.
Flexible Rib (Stiffener) Options: The forming cassette modules can be easily changed to produce different rib configurations, including:
Zigzag ribs (ziczac)
Flat panels (no ribs)
Square wave ribs
2-rib or 3-rib patterns

Multi-Profile Production Capability: By simply replacing the forming cassette modules, the machine can switch between various snap lock panel profiles to meet different project requirements.

Applications of Portable Snap Lock / Mobile Panel Roll Forming Machine

The Portable Snap Lock Roll Forming Machine and Mobile Panel Roll Forming Machine are ideal for on-site panel production in a wide range of roofing and wall projects. Key applications include:
Residential Roofing: Perfect for producing snap lock standing seam metal roofs for houses, villas, and residential buildings. The machine can roll continuous panels on-site, reducing seams and improving waterproofing.
Commercial and Industrial Buildings: Suitable for large-scale projects such as warehouses, factories, workshops, and shopping centers where fast installation and long panel lengths are required.
Agricultural Structures: Commonly used for barns, livestock shelters, grain storage buildings, and farm sheds due to its mobility and ability to work in remote locations.
Wall Cladding and Facades: Produces high-quality snap lock wall panels for exterior walls, providing both aesthetic appeal and structural strength.
Temporary and Emergency Structures: Ideal for quick-setup buildings, disaster relief shelters, and construction site offices thanks to its portable design and gasoline engine power.
Remote and Off-grid Projects: The 16 HP gasoline engine allows the machine to operate efficiently in areas without electricity, making it perfect for mountainous, rural, or island construction sites.
Custom Length Panel Production: Enables contractors to fabricate panels in any length needed directly at the job site, minimizing joints and material waste.

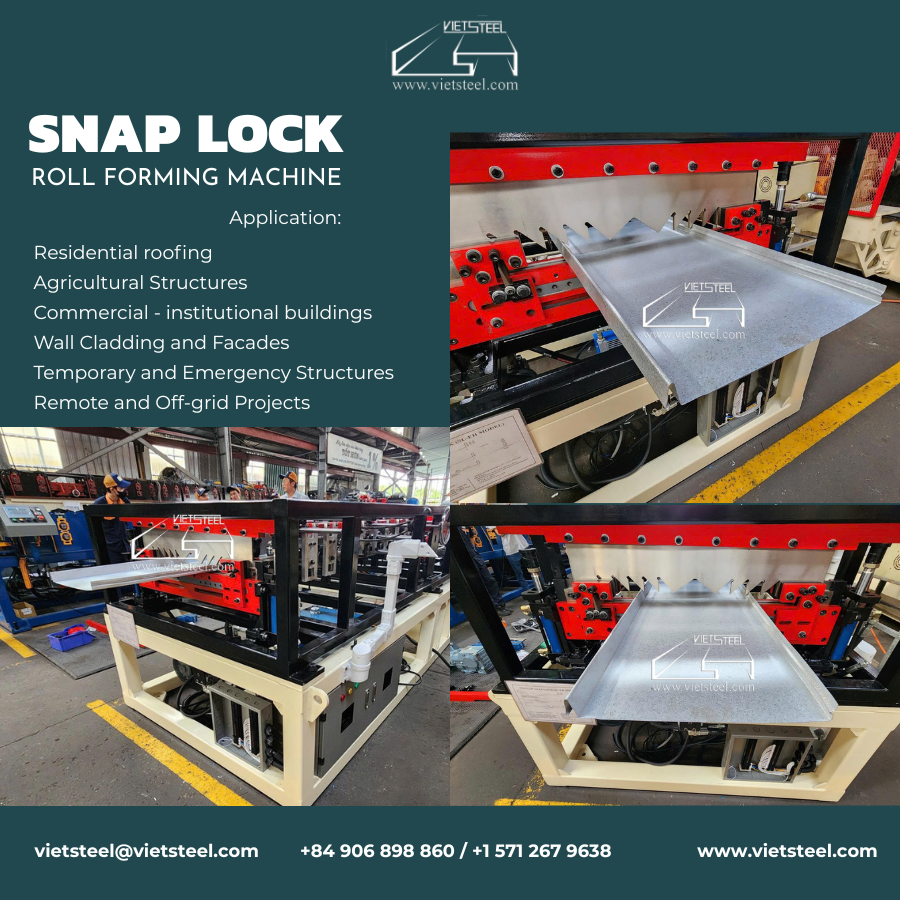

snap lock roll forming machine

Why Choose On-Site Portable Snap Lock Machine?


Full Control & Faster Project Delivery: Produce custom-length panels directly at the job site, eliminating delivery delays, shipping damage, and dependency on suppliers
Significant Cost Savings: Reduce material waste, transportation costs, packaging fees, and labor for installation. Many contractors recover their investment quickly through higher margins and more projects.
Superior Panel Quality: Continuous panels with fewer seams mean better waterproofing, higher durability, and a cleaner, more professional finish — ideal for both low-slope and steep roofs.
Eco-Friendly & Less Waste: On-site production minimizes scrap metal and packaging waste, supporting greener construction practices.
Increased Profitability: Turn your team into a one-stop solution — roll panels and install immediately, allowing you to take on more jobs and offer faster turnaround to customers.

Benefits of Snap Lock Roll Forming Machine

Easy to transport and set up on any job site (only 2 tons, compact size).
Operates independently with a 16 HP gasoline engine — perfect for remote areas, rural projects, or sites without electricity.
Versatile for both roofing and wall cladding, helping you expand service offerings.
User-friendly design with PLC control and quick changeover reduces training time and downtime.
High forming speed (18 m/min) combined with straight, distortion-free cutting ensures consistent, high-quality output.

Why Snap Lock Panels Machine Are Popular?

Snap lock system offers fast, tool-free installation with concealed fasteners for a sleek, modern appearance.
Excellent weather-tight performance, durability (40–60 years), low maintenance, and good energy efficiency (reflects heat well).
Suitable for residential homes, villas, commercial buildings, warehouses, agricultural structures, and renovation projects.

Contact Vietsteel for Consultation and Quotation

If your company is looking for an efficient, stable, and long-term solution production, the Snap lock Roll Forming Machine from Vietsteel is a reliable choice.
