In modern residential and industrial roofing systems, Eave Drip (roof drip edge) is a small component but plays a critical role in water drainage, edge protection, and enhancing the overall durability of the roof structure. The growing demand for Eave Drip products has created higher requirements for production speed, accuracy, and automation in the manufacturing process.
Understanding these demands, Vietsteel has researched, designed, and successfully manufactured the Eave Drip Roll Forming Machine – a specialized solution capable of producing roof drip edges at high speed up to 50 meters per minute, ensuring stable operation, high precision, and compliance with international manufacturing standards.
Nội dung chính
Vietsteel – A Leading Manufacturer of Roll Forming Machines
Vietsteel is a reputable brand in the field of designing, manufacturing, and installing roll forming machine lines. With decades of hands-on experience, Vietsteel not only supplies machines but also delivers optimized production solutions for factories, helping customers to:
Increase productivity
Reduce labor costs
Standardize product quality
Meet large-scale domestic and international project demands
The Eave Drip machine is one of the proprietary product lines developed and named by Vietsteel, based on extensive experience serving demanding global markets.
What Is Eave Drip? Its Role in Roofing Systems
Eave Drip (also known as Drip Edge or Eave Flashing) is a metal accessory installed along the roof edge, designed to:
– Direct rainwater away from the roof edge
– Prevent water backflow into the roofing system
– Protect roof and wall structures
– Enhance the aesthetic appearance of the building
As Eave Drip products are thin-gauge components requiring high dimensional accuracy, their production demands a dedicated roll forming line rather than conventional forming machines.

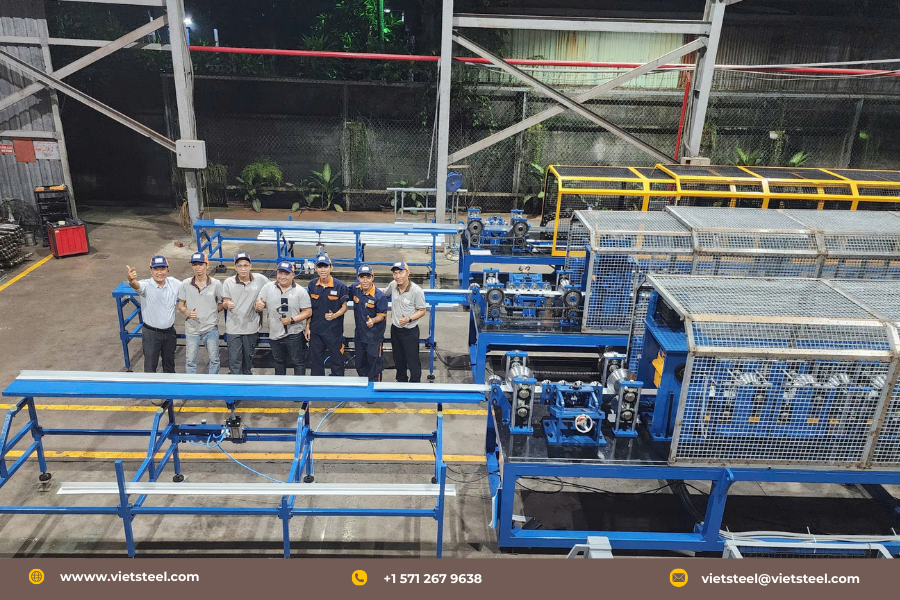

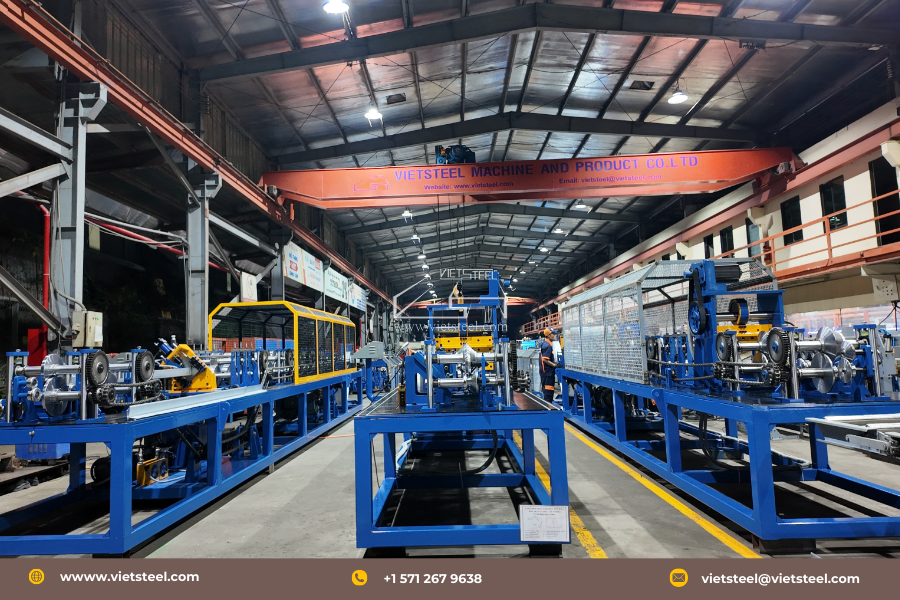

Overview of the Eave Drip Roll Forming Machine – Vietsteel
The Vietsteel Eave Drip Roll Forming Machine is a sheet metal forming line equipped with multi-station rollers and an automatic servo cutting system, enabling continuous, stable, and precise production.
Key Features
– Forming speed up to 50 m/min
– Automatic cutting with servo motor
– Modern PLC – HMI control system
– Capable of producing multiple Eave Drip sizes
– Suitable for aluminum and galvanized steel
Technical Specifications of the Eave Drip Roll Forming Machine
| ITEMS | TECHNICAL DATA |
| Electric requirement | 240V/3ph/50Hz |
| Power | Total Power: 18.5kWMotor transmission: 11kWCutting (Servo motor): 7.5kW |
| Weight of machine | 7 tons |
| Dimension (LxWxH) | 8.2 x 1.8 x 2 (m) |
| (feet) Forming speed | Maximum 50 meters/minute164 feet/minute |
| Forming rollers stations | 15 |
| Transmission system | Electric motor and gear box |
| Cutting System | Rotary cutting by servo motor |
| Control System | PLC, fully automatic programmable |
| Material thickness | 0.4 – 0.8mm (26-21GA) |
| Material width | 80 – 157 (mm) |
| Size (3 sizes) | 3” , 2” ,1.5” |
| Change size | By manual |
| Material Yield Strength | G450 – G550 Mpa (GL, GL) |
| Material | Aluminum and Steel |
Machine Structure and Operating Principle
1. Machine Frame & Main Structure
The machine frame is manufactured from heavy-duty structural steel and precision-machined to ensure:
– High rigidity
– Reduced vibration at high speeds
– Long-term durability in industrial environments

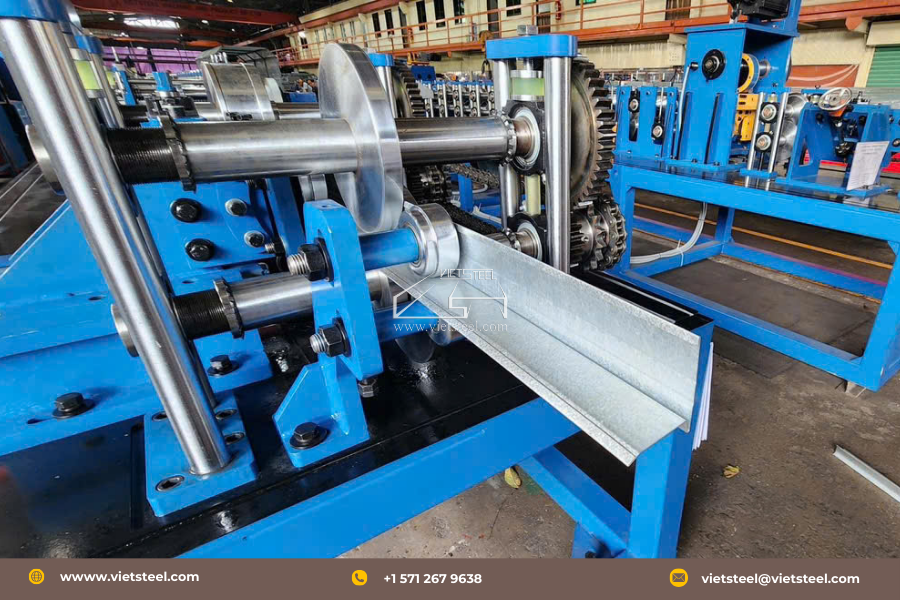

2. Shaft and Roller Forming System
– 15 forming stations with balanced forming force
– Rollers made from hardened alloy steel
– Ensures products are free from deformation and warping
3. Motor and Gearbox Drive System
– High-power motor for stable operation
– Optimized gearbox design for smooth power transmission
– Suitable for continuous multi-shift production
4. Servo Rotary Cutting System
– Accurate cutting to preset lengths
– No need to stop the machine during cutting
– Clean cutting edges without burrs
5. PLC Control Cabinet
– HMI touch screen interface
– Easy setup of length, quantity, and speed
– Capability to store multiple production programs
Outstanding Advantages of the Vietsteel Eave Drip Machine
Much higher productivity compared to manual fabrication
High accuracy, ideal for thin-gauge products
High automation level, reducing reliance on skilled labor
Fast, clean, and stable cutting thanks to servo technology
Reduced labor and operating costs
Flexible production of multiple Eave Drip sizes
Easy operation and maintenance
Long service life, suitable for long-term investment
Why Choose the Eave Drip Roll Forming Machine from Vietsteel?
Designed and manufactured directly by Vietsteel
Custom design and fabrication based on customer requirements
Optimized for real-world production conditions
Professional engineering support both remotely and on-site
Comprehensive warranty and maintenance services
Proven reputation in the global market
Contact Vietsteel for Consultation and Quotation
If your company is looking for an efficient, stable, and long-term solution production, the Eave Drip Roll Forming Machine from Vietsteel is a reliable choice.
